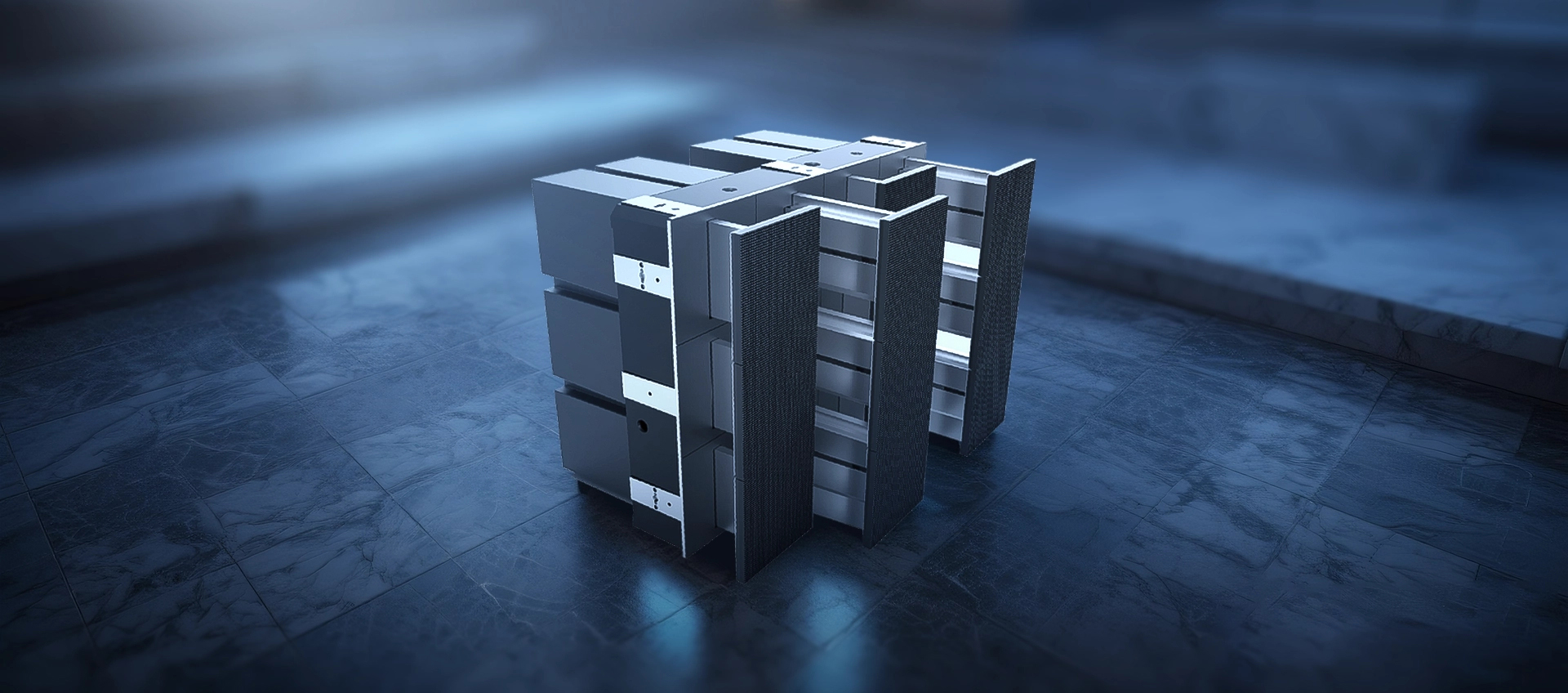

3D Kinetic LED Screen 160
| Specification | Value |
|---|---|
| Model | 160-200-I |
| Default LED Module Specification | Indoor-P1.98 |
| LED Module Dimensions (WxH) (mm) | 160x160 |
| Gap between LED Modules (mm) | 1 (0.5-1.5) |
| Visual Gap (mm) | 0.8 (LED bead offset 0.1) |
| Telescopic Unit Dimensions (WxH) (mm) | 160x160 (0.0256 m³) |
| Telescopic Unit Resolution (PxWxh) | 80x80 |
| Quick-install Cabinet Dimensions (mm) | 644x483 (4x3) |
| Quick-install Cabinet Thickness (mm) | 320 |
| Weight of Single Quick-install Cabinet (kg) | 23.3 |
| Power Consumption of Quick-install Cabinet (W) | 300 |
| Maximum Telescopic Stroke (mm) | 200 |
| Maximum Telescopic Speed (mm/s) | 600 |
| Fastest Full Extension/Retraction Time (Sec) | 0.4 |
| Number of Telescopic Units per Square Meter | 38.6 |
| Aluminum Weight per Square Meter (Kg) | 75 |
| Power Distribution per Square Meter (W) | 965 |
| Power Supply Requirement | For less than 3KW, use 220V single-phase power supply; for more than 3KW, use 380V three-phase five-wire power supply |
| Screen Brightness (cd/m²) | ≥600 |
| Environment - Operating Temperature (°C) | 0-40°C (No freezing) |
| Environment - Operating Humidity (RH) | Not rainproof, ≤70%RH (No condensation) |
| Environment - Other Operating Environment Requirements | Indoor, no corrosive gas, no flammable gas, no oil mist and dust |
| Heat Dissipation Structure | Open self-cooling type (Auxiliary fan for heat dissipation) |
