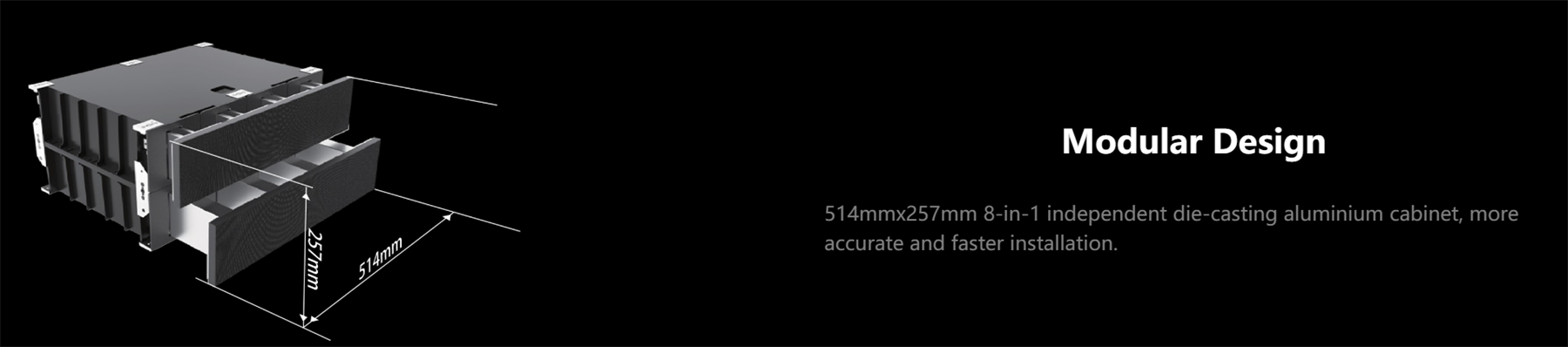

Modular Design
Front Maintenance Ultra-Thin Design
Front Maintenance Ultra-Thin Design3D Kinetic LED Screen
| Model | 250 - 200 - 1 |
|---|---|
| Default LED Module Specification | Indoor - P1.945 |
| LED Module Size (WxH) (mm) | 248.5x248.5 |
| Gap between LED Modules (mm) | 1.5 (1.0 - 2.0) |
| Visual Gap (mm) | 0.9 (LED bead offset 0.3) |
| Telescopic Unit Size (WxH) (mm) | 248.5x248.5 (0.0618 m²) |
| Telescopic Unit Resolution (PxWxh) | 128x128 |
| Quick-install Cabinet Size (mm) | 500x500 (2x2) |
| Quick-install Cabinet Thickness (mm) | 320 |
| Weight of Single Quick-install Cabinet (mm) | 13 |
| Power Consumption of Quick-install Cabinet (W) | 180 |
| Maximum Telescopic Stroke (mm) | 200 |
| Maximum Telescopic Speed (mm/s) | 500 |
| Fastest Full Extension/Retraction Time (Sec) | 0.5 |
| Number of Telescopic Units per Square Meter | 16 |
| Aluminum Weight per Square Meter (Kg) | 48 |
| Power Distribution per Square Meter (W) | 720 |
| Power Supply Requirement |
For less than 3KW, use 220V single-phase power supply; for more than 3KW, use 380V three-phase five-wire power supply |
| Screen Brightness (cd/m²) | ≥600 |
| Environment - Operating Temperature (°C) | 0 - 40°C (No freezing) |
| Environment - Operating Humidity (RH) | Not rainproof, ≤70%RH (No condensation) |
| Environment - Other Operating Environment Requirements | Indoor, no corrosive gas, no flammable gas, no oil mist and dust |
| Heat Dissipation Structure | Open self-cooling type (Auxiliary fan for heat dissipation) |
